High quality customized precision PS PMMA plastic injection S136 mold
Mould Information:
| Plastic injection Mould standard | HASCO, DME, MEUSBURGER, JIS, CHINA LKM STANDARD |
| Mould base | LKM&Hasco&DME standard (A,B plate 1730,2311,2312,P20 ) |
| Material main core and cavity insert | DIN2312,2738,2344,718,S136,8407,NAK80,SKD61,H13 |
| Hardness of steel | 46~56HRC |
| Material for Slider, Lifter and all sub insert use | 1.2767 HRC |
| Cavity | Single-cavity, Multi-cavity |
| A surface request | EDM & High Polish |
| Gate | Cold runner, Yudo/DME/HASCO/Synventive Hot runner |
| Mould lifetime | 500000~+1,000,000 shots |
| Material | ABS, Polycarbonate (PC), polypropylene (PP), Polymethyl Methacrylate (PMMA), Polyethylene (PE), Polyoxymethylene (POM), polyamide (PA), Nylon, Polyurethane (PU), Aluminum, Brass, Easy-cut-steel and etc. |
| Industry Range | 1.Consumer electronics: Digital camera, mp3 player, television, calculators, GPS electronics, DVD/VCD player and etc. |
| 2.Medical devices: B Ultrasound scanner case, Ultrasonic diagnostic imaging care, and etc. |
| 3.Telecommunications: microphone, speaker, monitor case, computer and etc. |
| 4.Auto parts: dashboard, car lamp, bar, car door, motorcycle, scooter, bike and etc. |
| 5.Household appliance: Cooker, air conditioner, TV, fan, shower, fridge, coffee machine and etc. |
| 6.Others: the customer made, toys, exhibition samples, testing samples. |
| Lead time | 4-6 weeks |
Mould Features 1. No cutting of the valve gate is employed to reduce the labor cost.
2. The advanced hot runner system assures a lower level of AA value.
3. Reasonable- designed cold water channels increase cooling effect and shorten the cycle time. 4. A good vacuum stove is imported for the heat treatment of the components, which assures the hardness of components HRC45-HRC48. 5. HASCO, DME. MEUSBURGER, JIS Standard customized metal and plastic CNC machining parts/CNC machining/aluminum parts machining method: CNC machining Tolerance: +-0.05mm Capacity: | CNC Turning | φ0.5 - φ300 * 750 mm | +/-0.005 mm |
| CNC Milling | 510 * 1020 * 500 mm(max) | +/-0.01 mm |
| CNC Stamping | 1000 * 1000 mm(max) | +/-0.05 mm |
| Drawing Format | IGS,STP,X_T ,DXF,DWG , Pro/E, PDF |
| Test Equipment | measurement instrument, Projector, CMM, Altimeter, Micrometer, Thread Gages, Calipers, Pin Gauge, etc. |
Our advantage
1. The capacity of Research and Development
Howe has a powerful team for research and development, which is capable of manufacturing the injection and die-casting molds with one cavity to Multi- cavities. At the same time, we can manufacture perform molds especially according to customers' injection molding machines. We also have the service to manufacture the products by the moulds, such as electronic enclosures, junction boxes, tool case, equipment case, plastic parts,etc..
2. Advanced Processing Equipment
Many machine tools are imported from America and Japan, such as Machine center, CNC lathers, EDM and so on. All of these increases processing precision, good interchangeability and low eccentricity
3. Perfect Inspection Method
Inspection tools include projector, hardness tester, stress tester, eccentric tester, electric balance, and other inspection tools.
The screw neck is made and inspected strictly by the standard of Coca-cola and the screw neck has been up to the standard of Coca-cola.
4. After-Sales Service
Technologists professional in after-sales line and excellent credit assures stable operation

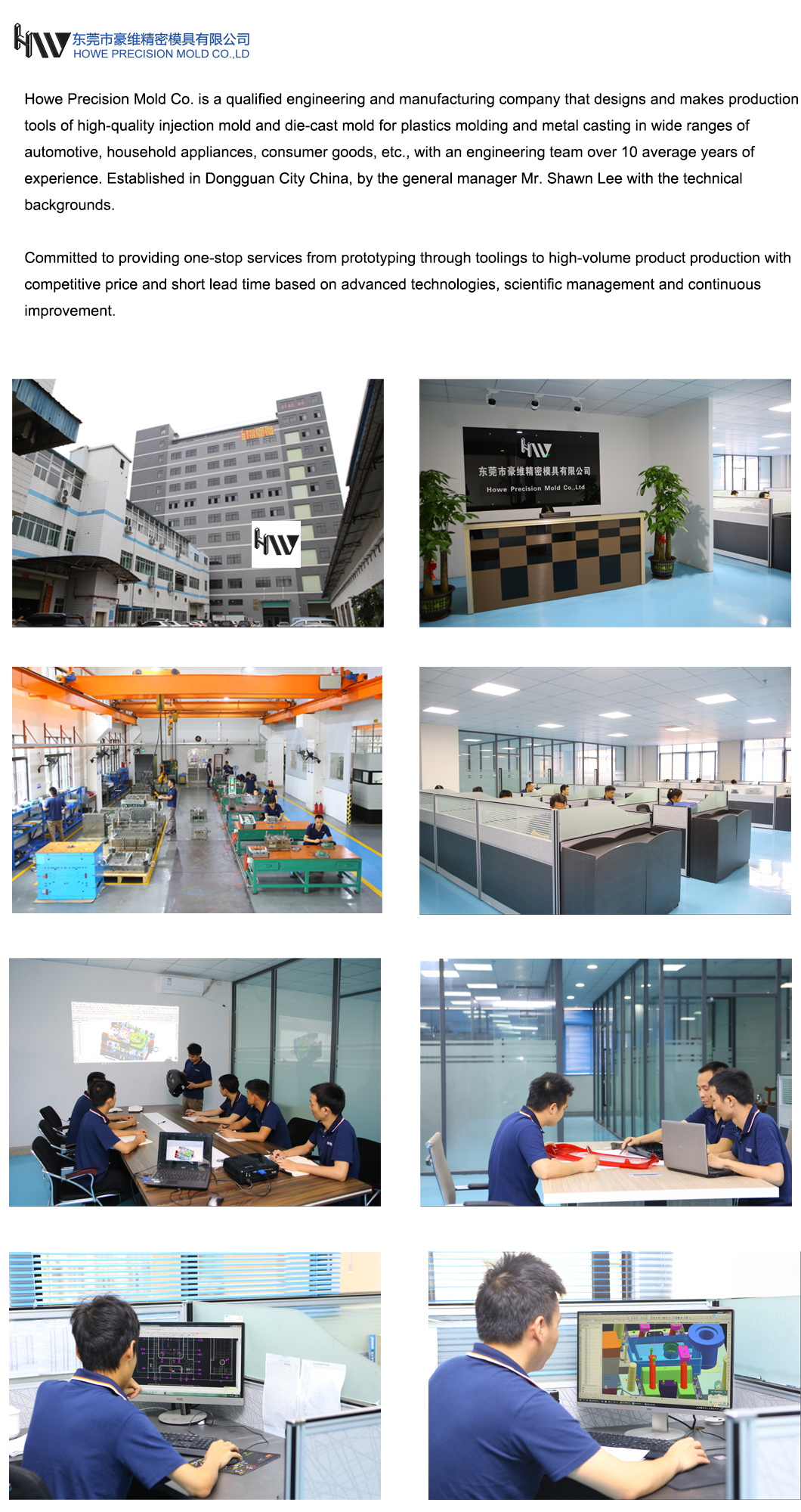

Company Profile
Work Shop
Quality Control
Business Cooperation
Package and Shipment
FAQ
Q: Can you do the finished product or parts Only?
A: Sure, We could do finished product according the customized mold. And make the mold also.
Q: Can you do Assemble?
A: Of cause we could do. Our factory with assembly room.
Q. I have an idea for a new product, but not sure if it can be manufactured. Can you help?
A. Yes! We are always happy to work with potential customers to evaluate the technical feasibility of your idea or design and we can advise on materials, tooling and likely set-up costs.
Q. My products have already been developed on CAD. Can you use the drawings?
A. Yes! DWG, DXF, IGES, Solidworks and Rhino files can all be used to generate quotes, models and mould tools - this can save time and money in producing your parts.
Q. Can I test my idea/product before committing to mould tool manufacture?
A. Sure, we can use CAD drawings to make models and prototyping for design and functional evaluations.
Q. What shall we do if we do not have drawings?
A. Please send your sample to our factory,then we can copy or provide you better solutions. Please send us pictures or drafts with dimensions(Length,Hight,Width),CAD or 3D file will be made for you if placed order.
Q. What type of mould tool do I need?
A. Mould tools can be either single cavity (one part at a time) or multi-cavity (2,4, 8 or 16 parts at a time). Single cavity tools are generally used for small quantities, up to 10,000 parts per year whereas multi-cavity tools are for larger quantities. We can look at your projected annual requirements and recommend which would be best for you.
Q: How long is your delivery time?
A: Generally 5-7 days for plastic products.25 days around to make a simple molds, complicated ones can be 30~50 days. We use our company DHL, TNT, UPS account to ensure the fast product delivery time.
Q: How many times try out?
A: 3 times and every time 2 sets sample with free delivery via DHL.
Q: What is your terms of payment ?
A: Paypal, T/T.
